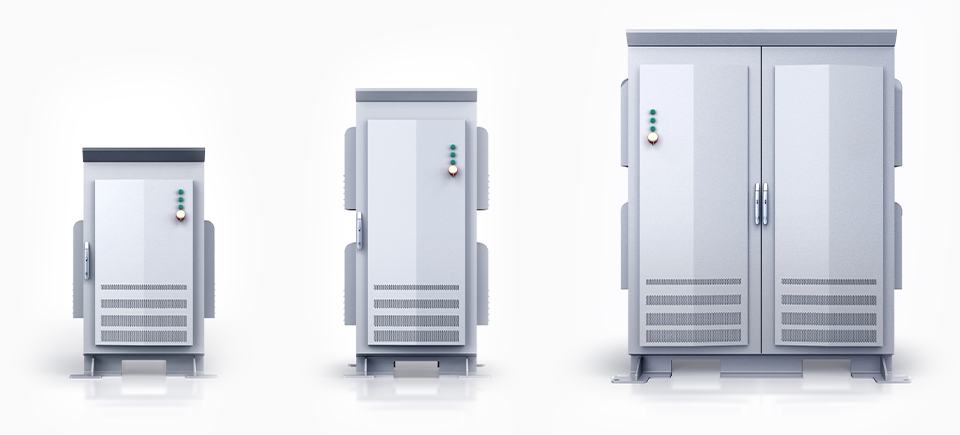

Modular PCS
C&I Scale.
Spec Board
| Modular Inveters | 1 | 2 | 3 | ||
|---|---|---|---|---|---|
| AC side | AC Output Power (kVA) | 120-200 | 240-400 | 360-600 | |
| Max AC Output Current (Arms) | 205 | 410 | 615 | ||
| Operating Grid Voltage (V) | 380-690 (3ø 3W) | ||||
| DC side | DC Voltage Range (Full Power) | 650-1500 V | |||
| Environment | Operating Temperature Range | -20 ~ 50℃ / Active Power Derating (> 50℃) | |||
| Cabinet | Environment Protection | IP44, Outdoor (AFC) | IP44, Outdoor (AFC) | IP44, Outdoor (AFC) | IP55, Outdoor (Antisalinity) |
| Dimensions [WxHxD] (m) | 0.8x1.5x1.25 | 0.8x1.75x1.25 | 1.6x2.1x1.4 | ISO 10ft CTNR (2.4x2.9x3.0) | |
| Weight (kg) | ~450 | ~850 | ~2500 | ~5000 (TBD) | |
| PCS control interface | Communication Structure | HMI (PCS Level, Default) - Quantum (ESS Level, Default) - S-Quantum (Site Level, Option) | |||
| Certifications & Standards | UL 1741SA, IEEE1547 (Inverter) | ||||
