Modular PCS

Utility Scale

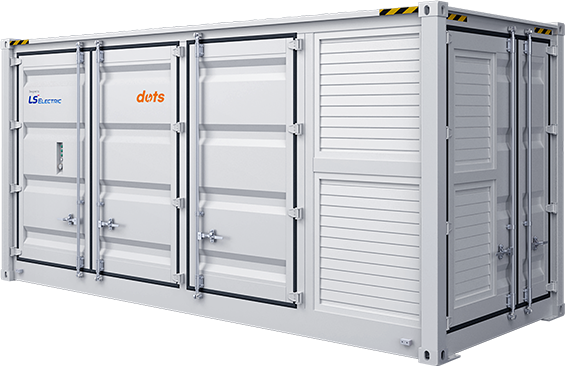

20ft.Utility Scale.
  • Scalable Output up to 3200kVA
  • DC Voltage w. Max 1500Vdc
  • Up to 70kW HVAC
  • 8 Independent BESS
Related data Download

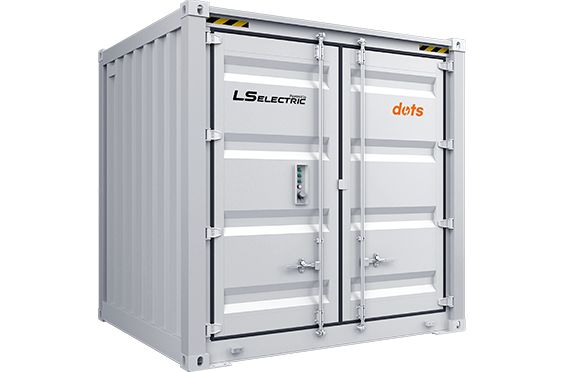

10ft.Utility Scale.
  • Scalable Output up to 1200kVA
  • DC Voltage w. Max 1500Vdc
  • 10kW HVAC × 3ea
  • 8 Independent BESS
Related data Download
Spec Board
Spec Board
Modular Inveters 1 2 3 6 12 16
AC side AC Output Power (kVA) 120-200 240-400 360-600 720-1200 1440-2400 1920-3200
Max AC Output Current (Arms) 205 410 615 1230 2460 3280
Operating Grid Voltage (V) 380-690 (3ø 3W)
Operating Grid Frequency (Hz) 50/60
Current Harmonic Distortion (THD) < 5 %
Power Factor 1.0 Leading to 1.0 Lagging
Reactive Power Compensation 4 Quadrant Operations
DC side DC Voltage Range (Full Power) 650-1500 V
Max. DC Continuous Current (A) 205 410 615 1230 2460 3280
Max. DC Short Circuit Current (A) Approx. 3 kA / 85 kA
Efficiency &
AUX. Supply
Efficiency (Max) > 98 %
Max Ramp Rate < 16.67 ms
Auxiliary Power Usage (W) 495 765 1035 1845 3465 4435
Environment Operating Temperature Range -20 ~ 50℃ / Active Power derating ( > 50℃)
Operating Relative Humidity Range RH < 85 % (No Condensation)
Max. Altitude (above sea level) 1000 M
Protections General AC Protection & Disconn. AC SPD, AC FUSE, EMI AC SPD, AC EMI, AC FUSE AC SPD, AC EMI, AC Fuse (Inverter)
General DC Protection & Disconn. DC SPD, DC FUSE, EMI DC SPD, DC EMI, DC FUSE DC SPD, DC EMI, DC Fuse (PCS/Inverter)
Cabinet Environment Protection IP44, Outdoor
(AFC)
IP44, Outdoor
(AFC)
IP44, Outdoor
(AFC)
IP55, Outdoor
(Antisalinity)
IP55, Outdoor
(Antisalinity)
IP55, Outdoor
(Antisalinity)
IP55, Outdoor
(Antisalinity)
Dimensions [WxHxD] (m) 0.8x1.5x1.25 0.8x1.75x1.25 1.6x2.1x1.4 ISO 10ft CTNR
(2.4x2.9x3.0)
ISO 10ft CTNR
(2.4x2.9x3.0)
ISO 20ft CTNR
(2.4x2.9x6.0)
ISO 20ft CTNR
(2.4x2.9x6.0)
Weight (kg) ~450 ~850 ~2500 ~5000 (TBD) ~6500 (TBD) ~10000 (TBD) ~12000 (TBD)
PCS control interface Communication Structure HMI (PCS Level, Default) - Quantum (ESS Level, Default) - S-Quantum (Site Level, Option)
Front Indication AC Line On, ACCB, Run/Fault, E-Stop Button
Interface & Protocol HMI Touch Screen Type, Modbus TCP
Operation Selectable Mode CC & CP W/Grid Tied & Forming W/UPS (Option)
Control Mode Active Power, Freq-Watt Droop (IEEE1547), Freq-Watt Curve (Freq. LUT),
Const-Current, Reactive Power, Volt-Var, Power-Factor,
Watt-PF Curve, Watt-Var Curve, Volt-Watt Droop(UL1741-SA), Volt-Watt Curve
Certifications & Standards UL 1741SA, IEEE1547 (Inverter)
