Air Conditioning

HVAC

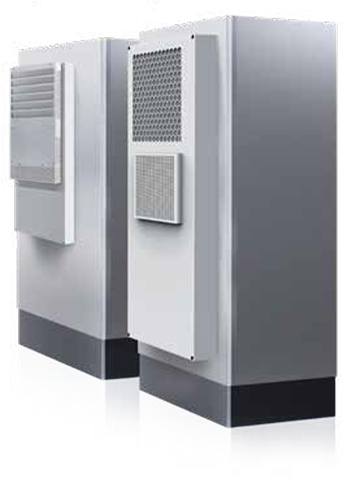

Container type Enclosure

It is a customized solution developed for the sustainable operation of outdoor ESS.
IDS' HVAC for outdoor ESS is a product developed for safe and sustainable operation of ESS.
It is an integrated product that does not separate the main body and outdoor unit, so installation costs are reduced through simple installation and easy maintenace is possible.

  • 01 Applying high-efficiency BLDC FAN

    Realization of energy saving by using high-efficiency BLDC fan.

  • 02 Anti sodium solution (optional)

    Condenser salt protection coating and SUS case are provided so that it can be used in salty areas such as coastal areas.

  • 03 Smart dehumidification operation

    In case of high humidity, smart dehumidification operation according to the setting.

  • 04 RS-485 (Modbus RTU) protocol provided

    Remote operation and monitoring are possible by supporting RS-485 communication.

  • 05 Smart heating operation function

    Built-in PTC heater, smart heating operation when the temperature is low.

  • 06 Wide operating temperature range

    -30 degrees ~ +55 degrees, can be operated in very low and high temperatures.

Product Information
  • Designed exclusively for use in outdoor environments, such as waterproof and dustproof (IP 55 / 56 ).
  • The battery condition can always be kept constant through dehumidification operation and heating operation, and it has a fire extinguishing stop function that immediately stops the cooler in case of fire, which is effective in preventing explosions and secondary fires.
  • Operation/stop and operation tests are available for each major part such as compressor and blower fan, and in case of failure, it is easy to identify faulty parts for easy maintenance.
  • Through the cumulative operation history transmission/reception function, it is possible to analyze the usage environment by recording and checking the actual operation time of the cooler.
  • 4.7-inch LCD full-color display applied for easy operation and good visibility.

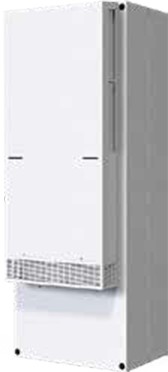

IDS-1000ESS

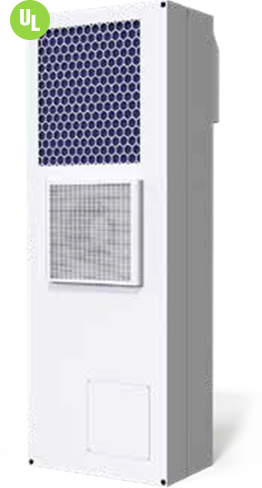

KTS-2000ESS

IDS-3000ESS

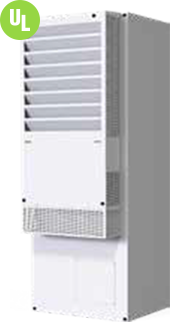

KTS-5000ESS

Specification table
Specification table
model name IDS-1000ESS KTS-2000ESS(UL Certification) IDS-3000ESS KTS-5000ESS(UL Certification)
cooling capacity 1000W 2000W 3000W 5000W
heating capacity 500W 1000W 1500W 2000W
power 1 Ph 220V, 50/60Hz combined 3Ph 220V, 50/60Hz combined
Power Consumption 385W 945W 1010W 2145W
Dimensions(WxDxH) 400x260x750 400x260x998 400x260x1300 600x340x1600
Weight 34Kg 45Kg 70Kg 125Kg
Total cooling output: 50/60Hz L35, L35 standard / Usage range: -30 ~ +55℃ (refrigerant: R-134a)

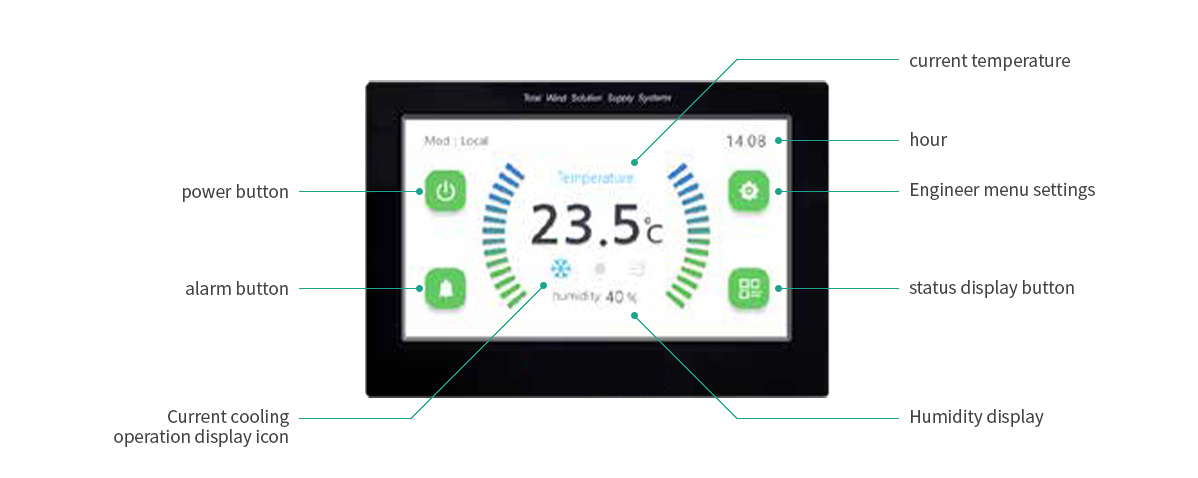

KTS-ESS HVAC Controller

Applying a 4.3-inch full-color LCD display that can intuitively and easily check and operate the air conditioner operation status
