Air Conditioning

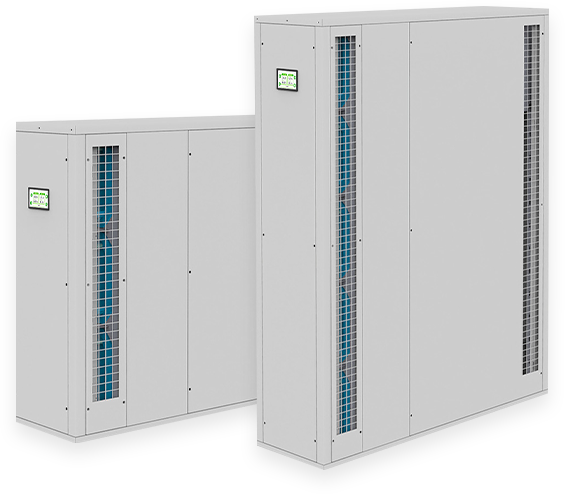

LCP(Liquid Cooling Package)
Modbus RTU protocol loaded
RS - 485(recommended standard)
The LCD is an air-cooled cooling system that intensively cools the air at the rear of the battery rack and supplies it back to the front of the rack.
Product Information
- Realization of energy saving by applying high-efficiency BLDC fan (fan speed control)
- Application of heating function (PTC Heater)
- RS-485 protocol support
- Provides a wide operating temperature range
- Overload, water flow alarm, etc. Protective device body
Specification table
| model name | LCP - KTCP 15 | LCP - KTCP 30 |
|---|---|---|
| cooling output | 0 ~ 13Kw | 0 ~ 26Kw |
| cooling capacity | 11,200Kcal/h | 22,400Kcal/h |
| heating capacity | 2Kw | 4Kw |
| power | 1Ph 220V, 50/60Hz combined | 1Ph220V,50/60Hz |
| Dimensions(WxDxH) | 400x998x1376 | 400x1698x1376 |
| Power Consumption | 3.5Kw | 6Kw |
FAN UNIT Structure

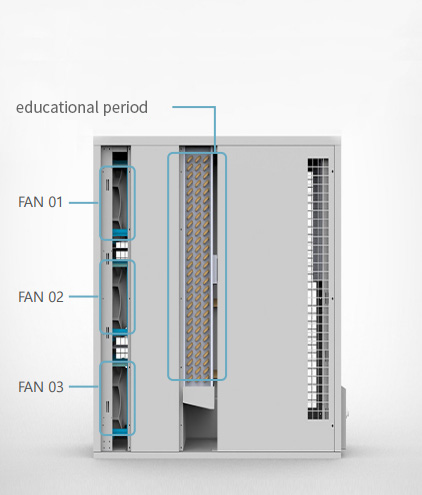

LCP-KTCP 15(3FAN UNIT) Structure

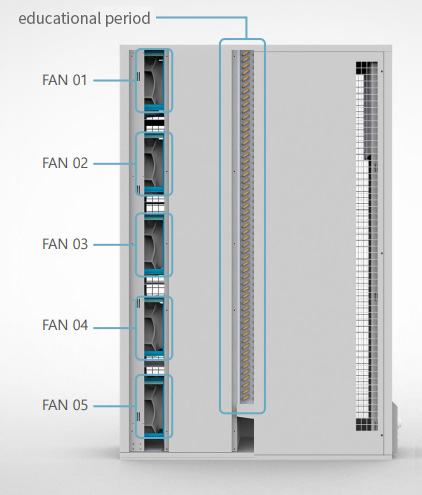

LCP-KTCP 30(5FAN UNIT) Structure
