Air Conditioning

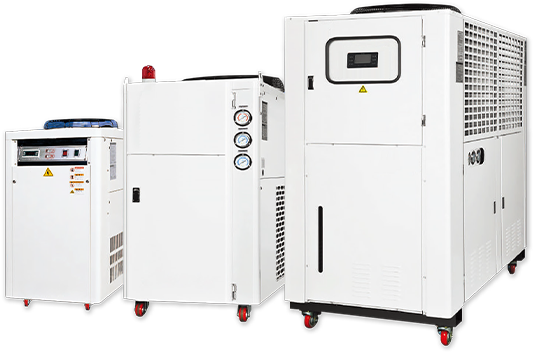

Water Chiller
KWC 1A ~ 40A

Air-cooled, water-cooled can be made to order The oil cooler controls the temperature of the heated oil during machine operation to prevent thermal deformation of the machine, and maintains the oil's viscosity and lubricating properties. As a result, it helps extend the life of machine tools by improving the machining precision and minimizing the defect rate.

  • 01 Wide range temperature control.

    Accurate temperature can be maintained using digital temperature controller.

  • 02 Excellent cooling performance.

    Built-in high-performance, low-noise compressor provides excellent cooling performance.

  • 03 Easy to install and move.

    It is equipped with a caster, so installation and movement are easy and convenient.

  • 04 Freeze protection for earth leakage breaker protection

    Equipped with an interlocking circuit / anti-freezing function, it enhances the safety of the product.

Specification table
Specification table
model name KWC-1A KWC-2A KWC-3A KWC-5A KWC-7.5A
Extruder output (KW) 0.75 1.5 2.25 3.75 5.5
Cooling capacity (Kcal/h) 2800 5600 8400 14000 21000
Pump power (KW) 0.13 0.35 0.75 0.75 1.1
Circulation amount (Liter) 5~30 5~30 40~60 40~80 40~90
Tank Capacity (Liter) 20 40 60 80 100
Refrigerant R-22, R-407
Temperature 5˚C ~ 35˚C
Fan Motor(KW) 0.1 0.2 0.2 0.4 0.75
Power 220V~1Ph, 50/60Hz / 380V~3Ph, 50/60Hz / 440V~3Ph, 50/60Hz
Dimensions (WxDxH) 470x760x870 580x1075x1050 580x1200x1130 660x1200x1130 760x1290x1400
Specification table
model name KWC-1A KWC-2A KWC-3A KWC-5A KWC-7.5A
Extruder output (KW) 7.5 11 15 22.5 30
Cooling capacity (Kcal/h) 28000 42000 56000 84000 112000
Pump power (KW) 2.2 2.2 3 3.75 3.75
Circulation amount (Liter) 90 120 200 250 300
Tank Capacity (Liter) 130 165 280 350 500
Refrigerant R-22, R-407
temperature 5˚C ~ 35˚C
Fan Motor(KW) 0.2x2 0.4x2 0.75x2 0.75x3 0.75x3
Power 220V~1Ph, 50/60Hz / 380V~3Ph, 50/60Hz / 440V~3Ph, 50/60Hz
Dimensions (WxDxH) 800x1540x1428 900x1770x1720 1000x2070x1775 1000x2930x1815 1100x3230x2055
