Air Conditioning

Panel Cooler
Energy saving products

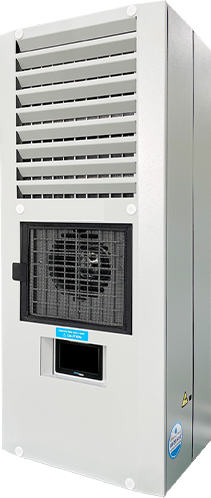

KTS - ES Series

Air conditioner for industrial control panel 2.3-inch full-color LCD display
Application of 2.3-inch full-color LCD display that can operate and operate conditions such as driving and alarms.

  • 01 Application of high-efficiency BLDC FAN

    Realization of energy saving by applying high-efficiency BLDC FAN

  • 02 Built-in condensate automatic evaporation device

    -

  • 03 Smart automatic dehumidification

    -

  • 04 Remote operation, monitoring

    RS-485/Modbus communication support

  • 05 English support

    -

Product Information
  • During use, high heat is generated inside the control panel, and internal damage occurs due to dust and moisture caused by the inflow of outside air, and problems such as equipment stoppage, errors, and malfunctions occur.
  • In order to prevent such loss and damage, it is necessary to use a control panel air conditioner that can remove heat and moisture generated from the control panel during equipment use.

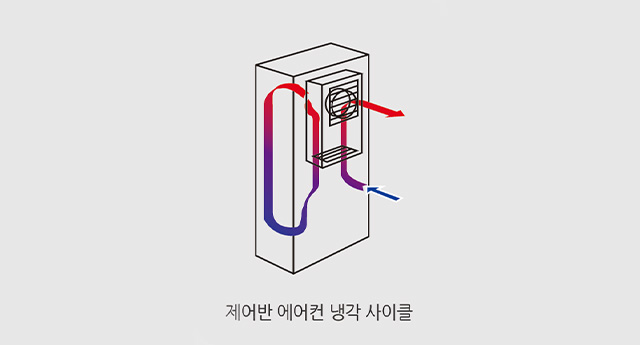

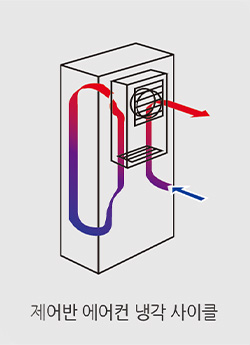

  • The control panel air conditioner cools and dehumidifies hot air conducted from the outside or electrical heat generated inside by circulating the air through the evaporator of the air conditioner.
  • At this time, the internal circulation air is completely blocked from the outside polluted air to prevent dust or foreign substances from entering the inside.
  • The external air purified through the filter cools the compressor and exchanges heat in the condenser to condense the refrigerant inside the condenser. is fed into the condenser.

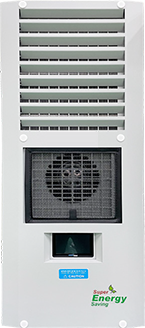

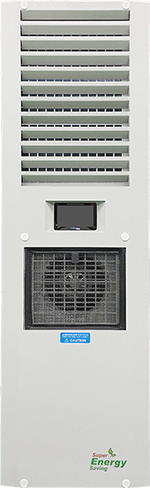

KTS - 750ES
KTS - 1000ES

KTS - 1500ES
KTS - 2000ES

KTS - 2500ES
KTS - 3000ES

KTS - 4500ES
KTS - 5000ES

Specification table
Specification table
model name KTS-750ES KTS-1000ES KTS-1500ES KTS-2000ES
cooling capacity 750W 1000W 1500W 2000W
circuit breaker capacity 10A 10A 15A 20A
power 1Ph 220V, 50/60Hz combined 1Ph 220V, 50/60Hz combined 1Ph 220V, 50/60Hz combined 1Ph 220V, 50/60Hz combined
Power Consumption 410W 560W 660W 730W
Dimensions (WxDxH) 400x280x750 400x280x750 400x280x950 400x280x950
Weight 36kg 36kg 44kg 44kg
Specification table
model name KTS-2500ES KTS-3000ES KTS-4500ES KTS-5000ES
cooling capacity 2500W 3000W 4500W 5000W
circuit breaker capacity 20A 30A 30A 30A
power 1Ph 220V, 50/60Hz combined 1Ph 220V, 50/60Hz combined 1Ph 220V, 50/60Hz combined 1Ph 220V, 50/60Hz combined
Power Consumption 980W 1210W 1710W 1910W
Dimensions(WxDxH) 400x280x1300 400x260x1300 500x410x1600 500x410x1600
Weight 67kg 67kg 89kg 89kg

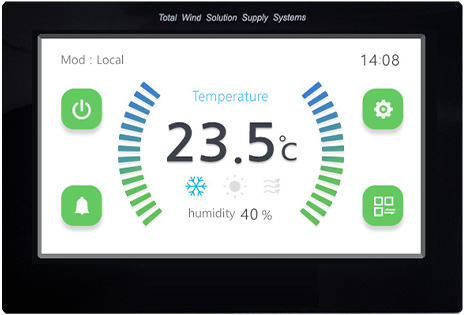

Large full-color LCD touchpad main screen

The current temperature and current humidity are displayed, and the three icons below indicate the current operating status.
The number displayed in the middle indicates the current temperature.

Temperature setting

You can set the cooling / heating / dehumidifying temperature and temperature deviation by pressing the number.

  • Cooling
  • Heating
  • Dehumidification
Entry-level product

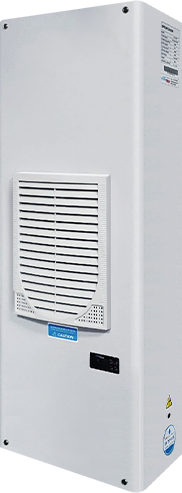

KTS - S Series

All products 50 / 60 Hz combination / built-in condensate automatic drying function

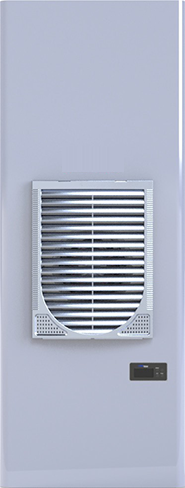

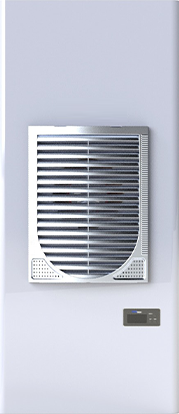

KTS - 300S

KTS - 500S
KTS - 750S

KTS - 1000S

KTS - 1500S
KTS - 2000S

Specification table
Specification table
model name KTS-300S KTS-300S KTS-750S KTS-1000S KTS-1000S KTS-2000S
cooling capacity 300W 500W 750W 1000W 1500W 2000W
circuit breaker capacity 10A 10A 15A 15A 20A 20A
power 1Ph 220V, 50/60Hz combined
Power Consumption 600W 700W 800W 980W 1350W 1650W
Dimensions(WxDxH) 300x190x550 350x190x570 400x190x670 400x190x950 400x230x1050 400x230x1050
Weight 22kg 25kg 34kg 38kg 46kg 46kg

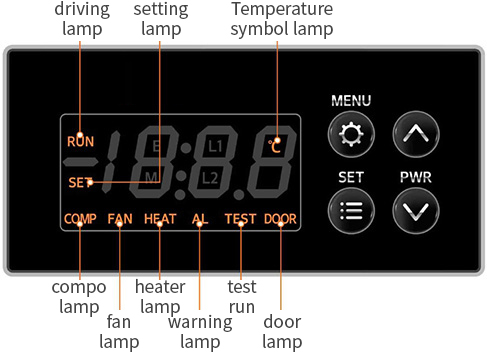

Touchpad
